TYR CNC 5-Axis Bridge Saw

TYR CNC 5-Axis Bridge Saw

A 5-Axis CNC Bridge Saw Machine is an advanced cutting machine primarily used in the stone fabrication industry for precision cutting of materials like granite, marble, quartz, and engineered stones.

  • Kitchen countertops & Vanity Tops

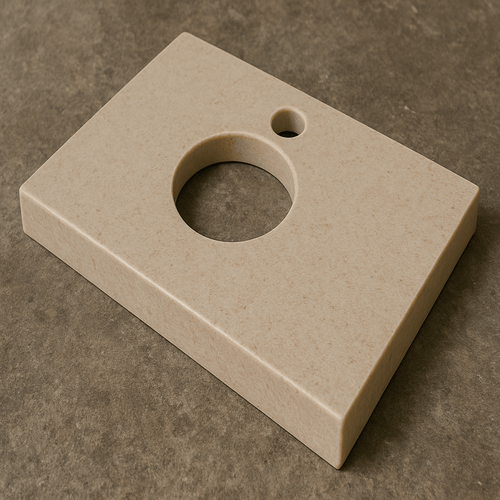

CNC 5-Axis Bridge Saw Machine provides various shapes cutting like circle, ellipse, square, rectangular etc. for the sink cutouts.

It also can drill Tap holes with its milling function.

  • Miter Edge Cutting

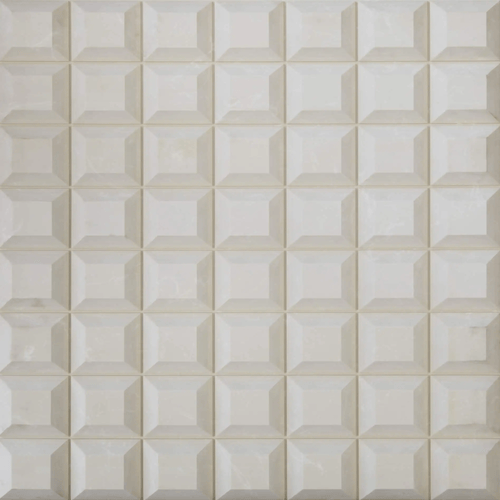

  • Fluting Patterns
  • Monument and memorial work
  • Architectural stone detailing
  • Tile and slab customization

5-Axis Movement:

  • X, Y, Z axes: Standard linear movement (forward-backward, side-to-side, and up-down).
  • A-axis: Tilting of the saw blade.
  • C-axis: 360° Rotation of the saw blade.

Bridge-Style Design:

  • A horizontal beam (bridge) that supports the saw head.Offers excellent stability and precision over large work areas.

CNC Control System:

  • Automated and programmable cutting paths.
  • CAD/CAM integration for complex design execution.

Cutting Capabilities:

  • Straight cuts, miter cuts, sink cutouts, curves, circles, and intricate shapes.
  • Often used for countertop fabrication, floor/wall panels, and 3D sculptures.

Engraving Spindle (Optional)

  • Machine Version with Engraving spindle can also provide feasibility of doing 2D carving work on job.
TYRCNC-5-350SP
Maximum Working Size 3500 x 2200 mm
Spindle RPM 0-5000 RPM
Maximum cutting thickness Max. 600 Dia. Blade & cut 150 mm
Blade Diameter ɸ 350-600 mm
X Axis Stroke 3700 mm
Y Axis Stroke 2650 mm
Z Axis Stroke 350 mm
C Axis Rotation Degree ±370°
Blade Tilting Degree 0-90°
Table Tilting Degree 85°
Main motor power 22 KW
Water Consumption 4 m3/h
Total Power 28 KW
