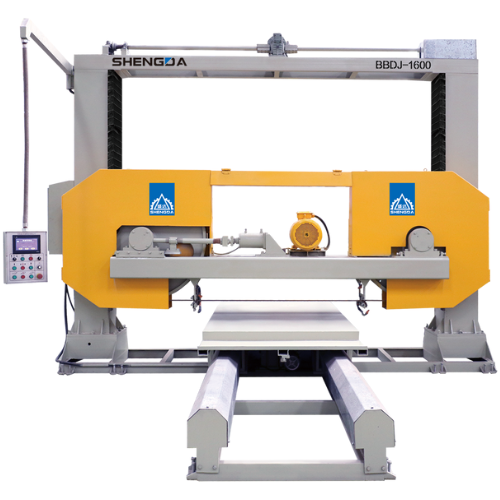

Slab Splitting Machine

Slab Splitting Machine

A Slab Splitting Machine is used to cut thick stone slabs horizontally, effectively splitting them into two or more thinner slabs. This process is essential in stone processing plants where natural stone blocks (granite, marble, sandstone, etc.) or pre-sawn slabs need to be made thinner for tiles, veneers, or cladding panels.

  • Producing stone veneers (2–3 cm thick)
  • Making floor and wall tiles from thicker slabs
  • Make sandwich material like clad marble over ceramic tile for decorative purpose.
  • Preparing thin samples for marketing purpose which is easy to carry and also saves cost in courier.
  • Uses a horizontal diamond blade to split slabs from the middle.
  • Adjustable thickness setting allows you to set the target thickness of the resulting slabs
BBDJ-1600
Table dimension 0-3000 mm
Max. cutting width 1600 mm
Cutting height 5-700 mm
Max. blade diameter 1600 mm
Cutting speed 1.5-2 m/h
Main Motor Power 7.5 KW
Water consumption 3 m3/h
Overall dimension 4500 x 3400 x 6000 mm
