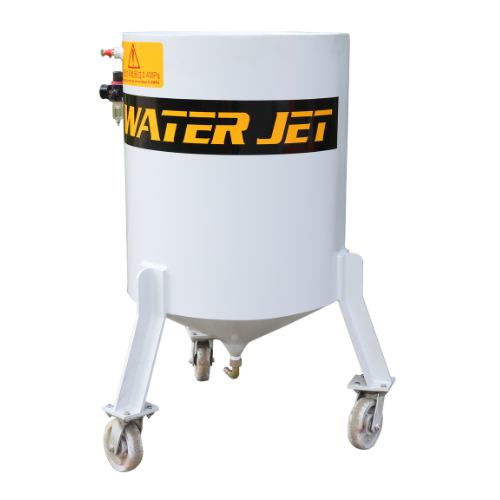

CNC 5-Axis AC Waterjet Machine

CNC 5-Axis AC Waterjet Machine

AC (45-degree) waterjet cutting machine is used for creating angled cuts, often for bevels, chamfers, or intricate shapes at a 45-degree angle. These machines are versatile and can cut various materials like metals, stone, glass, and composites, offering precise and clean edges without heat-affected zones.

Bevel and Chamfer Cuts:

Creating angled edges on materials for decorative or functional purposes, such as in architectural elements, furniture, or automotive components.

Miter Cuts:

Creating accurate 45-degree angles for joining materials, particularly in stone cutting for tiling, countertops, and mosaic work.

Intricate Shapes:

Generating complex shapes with 45-degree angles for artistic designs, logos, or custom parts in various industries.

Material Cutting:

Cutting a wide range of materials at 45 degrees, including metals, stone, glass, ceramics, and composites, making it a versatile solution for diverse applications.

Aerospace and Automotive:

Fabricating components with precise angled cuts for aerospace and automotive applications, where accuracy and material integrity are crucial.

Stone and Tile Industry:

Cutting stone and tile to create patterned designs, custom borders, or intricate installations with mitered edges.

Countertops and Benchtop Fabrication:

Creating sinks, tap holes, and mitered edges in countertops and benchtops using waterjet cutting for precise and clean edges

  • 5 axis CNC waterjet cutter adopts international high-end Japanese brand servo motor and servo driver to make the control accuracy higher.
  • X-Y Axis Oil immersed Ball Screw Design.
  • All spare parts are processed by Japanese high precision CNC, ensure high accuracy of the 5 axis CNC waterjet.
  • Major consumables of intensifier are Made in USA, which gives better performance with longer life.

Work Table:



  YD-3020 YD-4020
Structure Bridge
Work Table Size 3100 x 2100 mm 4100 x 2100 mm
X-Y Working Stroke 2800 x 2000 mm 3800 x 2000 mm
Z-Axis Stroke 100 mm
A Axis Rotation Angle + / – 45°
C Axis Rotation Angle Limitless Rotation

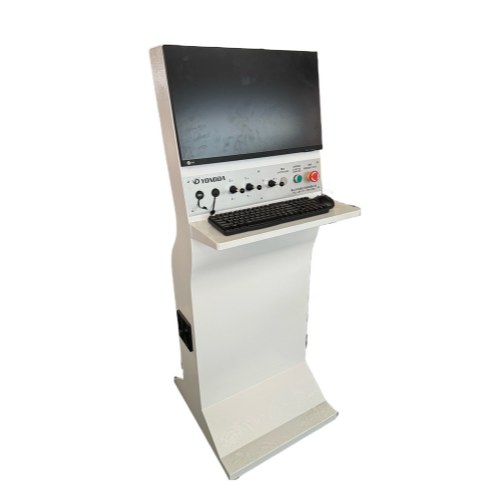

CNC Controller AC Servo System for 5-Axis
Accuracy Cutting: +/- 0.1 mm,

Repeatability: +/- 0.05 mm
Traverse Speed 6000 mm/min.

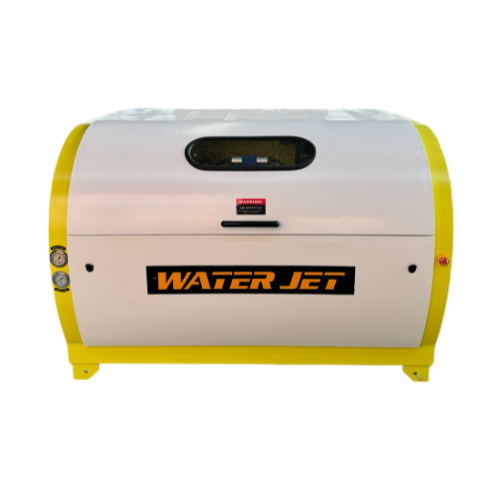

Supercharger:



  YD-450
Max. Pressure 450 Mpa
Long Time Working Pressure 300-380 Mpa
Intensifier Ratio 1:20
Max Flow Rate 3.7 Ltr./Min.
Inlet Pressure 0.4 Mpa
Orifice Size 0.33 mm
Power  Supply 37 KW
