CNC 3-Axis Waterjet Machine

CNC 3-Axis Waterjet Machine

A 3-axis Water Jet Cutting Machine is a type of CNC (Computer Numerical Control) machine that uses a high-pressure stream of water, often mixed with abrasive particles, to cut a wide variety of materials. The “3-axis” designation means that the cutting head can move in three directions: X (left-right), Y (forward-backward), and Z (up-down).

Metal Fabrication

  • Cutting steel, aluminum, copper, brass Etc.
  • Producing brackets, plates, flanges, and enclosures
  • No heat-affected zones (HAZ) – avoids warping or altering metal properties



Aerospace Industry

  • Cutting high-strength alloys and composites with tight tolerances
  • Creating parts for airframes, engine components, and interior fittings
  • Ideal for exotic materials like Inconel and carbon fiber



Automotive Industry

  • Making gaskets, interior panels, dashboard components, and chassis parts
  • Prototyping and production of custom parts
  • Cutting complex shapes with minimal material waste



Construction and Architecture

  • Cutting decorative stone, tiles, marble, granite, and glass
  • Creating custom designs for facades, flooring, and artwork
  • Used for signage and architectural metal panels



Medical Equipment Manufacturing

  • Producing surgical tools, brackets, and enclosures
  • Working with stainless steel and titanium without thermal distortion



Packaging Industry

  • Cutting foam, rubber, and plastic for inserts and protective packaging
  • Making custom shapes for packaging liners or product holders



Tool and Die Making

  • Creating dies, punches, and molds from hardened materials
  • Used for prototyping and small-batch production



Textiles and Composites

  • Cutting Kevlar, carbon fiber, fiberglass, and layered materials
  • Common in sports equipment and protective gear manufacturing
  • Cold cutting = No heat distortion
  • Can cut thin to very thick materials (up to several inches)
  • Works on soft, brittle, and hard materials
  • Highly accurate and repeatable cuts
  • Eco-friendly with minimal waste and no harmful fumes

Work Table:

YD-1212 YD-2515 YD-3020 YD-4020

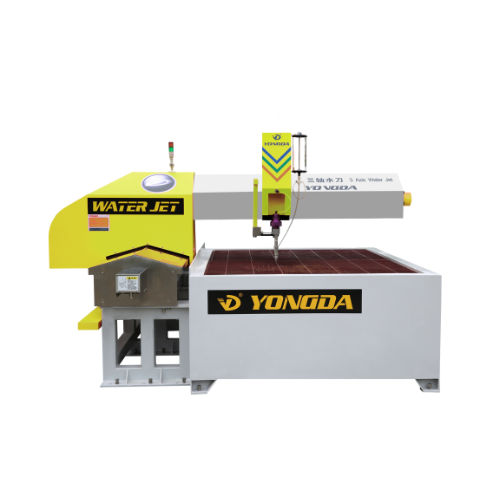

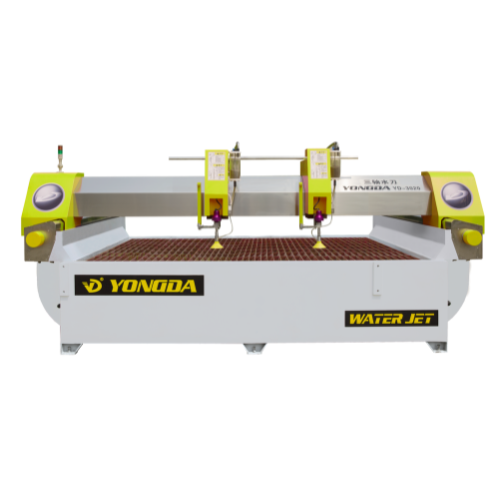

Structure Flying Arm Bridge
Work Table Size 1300 x 1300 mm 2600 x 1600 mm 3100 x 2100 mm 4100 x 2100 mm
X-Y Working Stroke 1200 x 1200 mm 2500 x 1500 mm 3000 x 2000 mm 4000 x 2000 mm
Z-Axis Stroke 100 mm

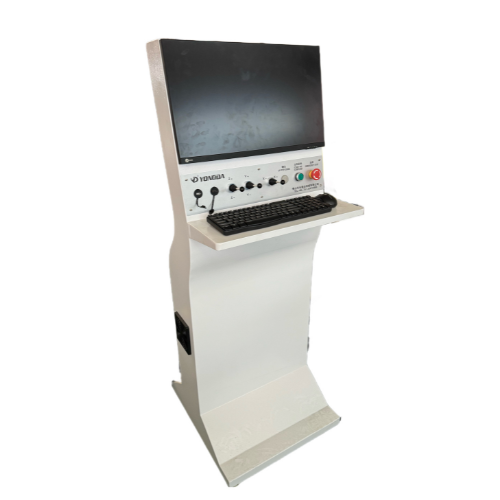

CNC Controller Stepper Drive Servo Drive
Accuracy Cutting: +/- 0.1 mm, Repeatability: +/- 0.05 mm
Traverse Speed 6000 mm/min.

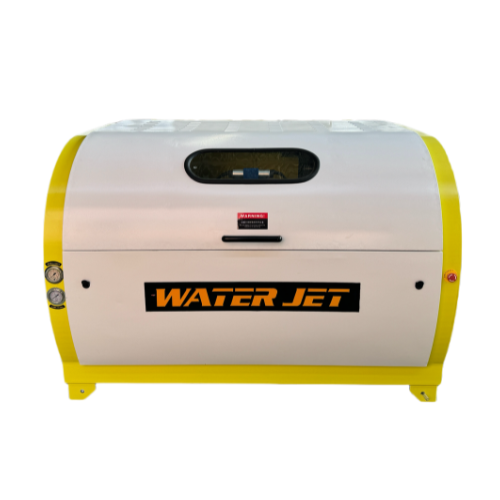

Supercharger:

YD-450
Max. Pressure 450 Mpa
Long Time Working Pressure 300-380 Mpa
Intensifier Ratio 1:20
Max Flow Rate 3.7 Ltr./Min.
Inlet Pressure 0.4 Mpa
Orifice Size 0.33 mm
Power  Supply 37 KW
